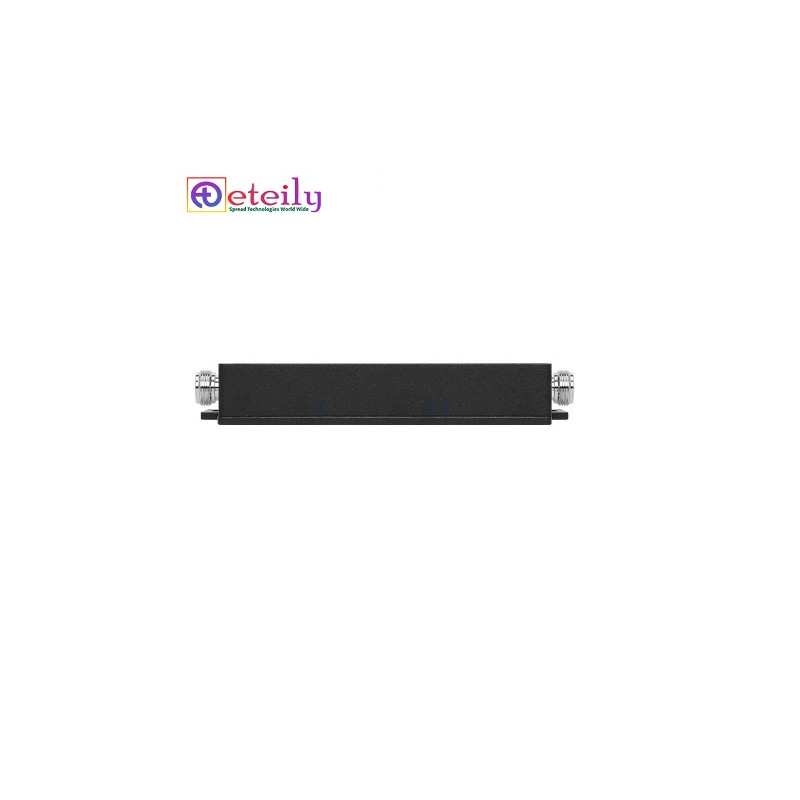

The Mini DIN Connector 20 dB Directional Coupler is a versatile hybrid coupler designed for efficient signal management across a broad frequency range of 88-500 MHz. This device allows for precise signal sampling while maintaining low loss, making it ideal for RF testing, broadcasting, and communication applications.

Key Features:

• Frequency Range: Supports a wide range from 88 to 500 MHz, accommodating various RF applications.
• 20 dB Coupling: Provides a consistent 20 dB coupling factor, ideal for monitoring and signal analysis.
• Low Insertion Loss: Ensures minimal signal degradation, enhancing overall system performance.
• Directional Design: Allows for easy separation of forward and reverse signals, improving measurement accuracy.
• Compact Mini DIN Connectors: Facilitates straightforward integration and minimizes installation space requirements.

Applications:

• RF Testing and Measurement
• Signal Monitoring in Broadcast Systems
• Communication Equipment
• Antenna Systems

This hybrid coupler is essential for professionals seeking reliable performance and precision in their RF signal management solutions.
