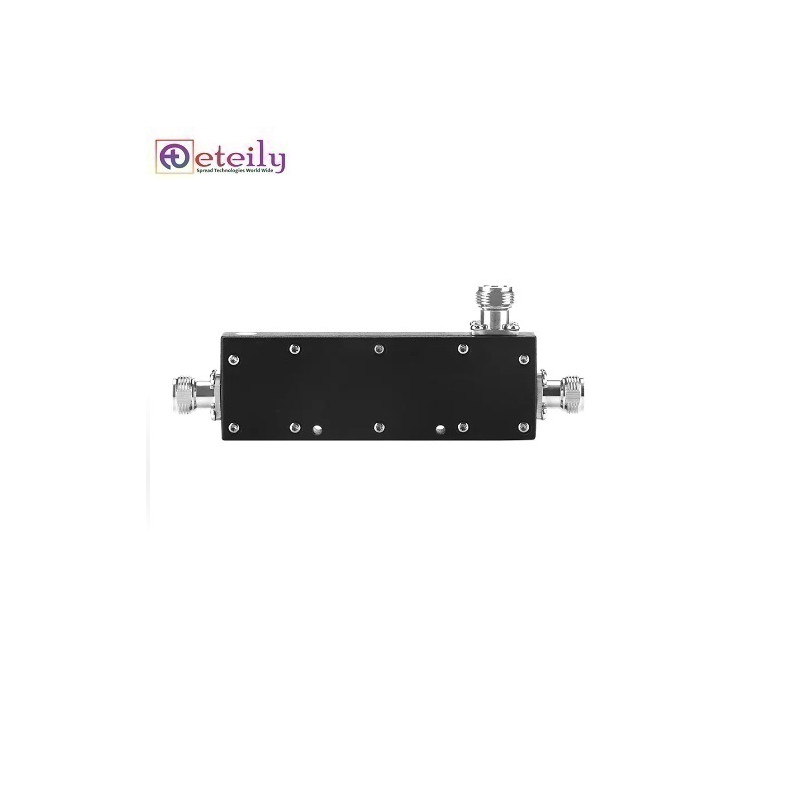

    ETEILY 5G products 698-4000MHz 10dB Directional coupler with mini Din female 4.3-10/Din/N female connector
    ETEILY 5G products 698-4000MHz 10dB Directional coupler with mini Din female 4.3-10/Din/N female connector
    ETEILY 5G products 698-4000MHz 10dB Directional coupler with mini Din female 4.3-10/Din/N female connector
    ETEILY 5G products 698-4000MHz 10dB Directional coupler with mini Din female 4.3-10/Din/N female connector
    ETEILY 5G products 698-4000MHz 10dB Directional coupler with mini Din female 4.3-10/Din/N female connector

    ETEILY 5G products 698-4000MHz 10dB Directional coupler with mini Din female 4.3-10/Din/N female connector

    SKU: ET-CL10D5G2W-NFS

    Write your review

    EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

    • CE Certified CE Certified
    • ROHSROHS
    • ReachReach
    • sales@eteily.comsales@eteily.com
    • Call Now: Call Now: +91-8889017888
    • REQUEST FOR REQUEST FOR QUOTE
    • "We "We are world Wide Supplier"
    • Whatsapp ContactWhatsapp Contact +91-9343643799
    Frequency Range(MHz)
    698-4000
    Variants
    6dB
    7dB
    8dB
    10dB
    13dB
    15dB
    20dB
    30dB
    Coupling(dB)
    ±0.7
    ±0.8
    ±0.9
    ±1
    ±1.2
    ±1.4
    ±1.5
    ±2
    Insertion loss(dB)
    ≤1.8
    ≤1.5
    ≤1.2
    ≤1
    ≤0.7
    ≤0.6
    ≤0.4
    ≤0.3
    Port isolation,(dB)
    ≥15
    VSWR
    ≤1.25
    PIM(dBc)
    ≤-155@2×+43dBm
    Power Handling(W)
    100,Avg
    Connectors
    SMA-F,50Ω
    Operating Temperature(℃)
    -30~+65
    Application
    Indoor
    Size(mm)
    119×51×28(Excluding Connectors and Brackets)
    Colour
    Black
    SKU: ET-CL10D5G2W-NFS

    Specific References

    ETEILY 5G products 698-4000MHz 10dB Directional coupler with mini Din female 4.3-10/Din/N female connector
