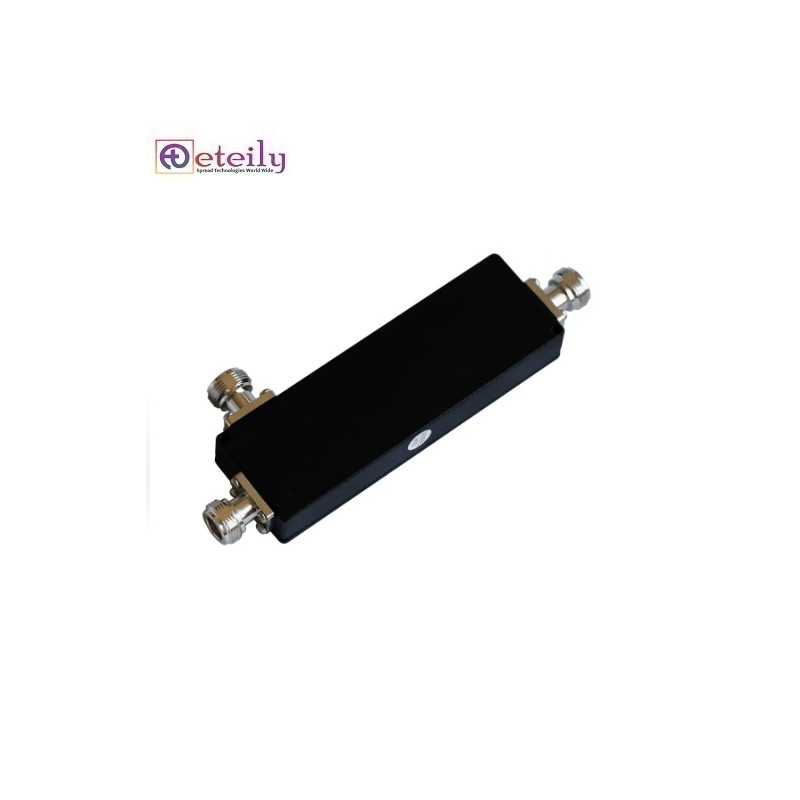

    ETEILY 7 dB Cavity Directional Coaxial RF Directional Coupler 698 - 2700 MHz N Female directional coupler
    ETEILY 7 dB Cavity Directional Coaxial RF Directional Coupler 698 - 2700 MHz N Female directional coupler
    ETEILY 7 dB Cavity Directional Coaxial RF Directional Coupler 698 - 2700 MHz N Female directional coupler

    ETEILY 7 dB Cavity Directional Coaxial RF Directional Coupler 698 - 2700 MHz N Female directional coupler

    SKU: ET-CL7D3G2W-NFS

    Write your review

    EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

    • CE Certified CE Certified
    • ROHSROHS
    • ReachReach
    • sales@eteily.comsales@eteily.com
    • Call Now: Call Now: +91-8889017888
    • REQUEST FOR REQUEST FOR QUOTE
    • "We "We are world Wide Supplier"
    • Whatsapp ContactWhatsapp Contact +91-9343643799
    Product Description



    Feature

    1. High Isolation,
    2. Multi-Band Frequency Coverage,
    3. High Average Power Rating,
    4. Multiple IP Degree Conditions,
    5. Low Cost Design, Design to Cost,
    6. N , DIN 4.3-10Connectors,
    7. Custom Designs Available

    Electrical Specifications:

    Coupling(dB)

    5

    6

    7

    8

    10

    12

    15

    20

    25

    30

    35

    40

    Attenuation(698-2700)

    ±0.8

    ±1

    ±1.2

    ±1.2

    ±1.2

    ±1.5

    Insertion Loss(dB)

    ≤2.1

    ≤1.65

    ≤1.3

    ≤1.1

    ≤0.75

    ≤0.6

    ≤0.4

    ≤0.3

    ≤0.2

    ≤0.2

    ≤0.2

    ≤0.2

    Frequency Range

    698-2700MHz

    VSWR

    ≤1.22

    Directivity(dB)

    ≥20

    ≥18

    Average Power(W)

    ≤200

    3rd Order IMD(dBc)

    ≤-150@2X43dBm

    Impedance(Ω)

    50

    Connectors Type

     N-Female

    Operating Temperature(℃)

    -20~+55

    Application

    For Indoor or Outdoor Use

    Finish

    Black Plated
    SKU: ET-CL7D3G2W-NFS
