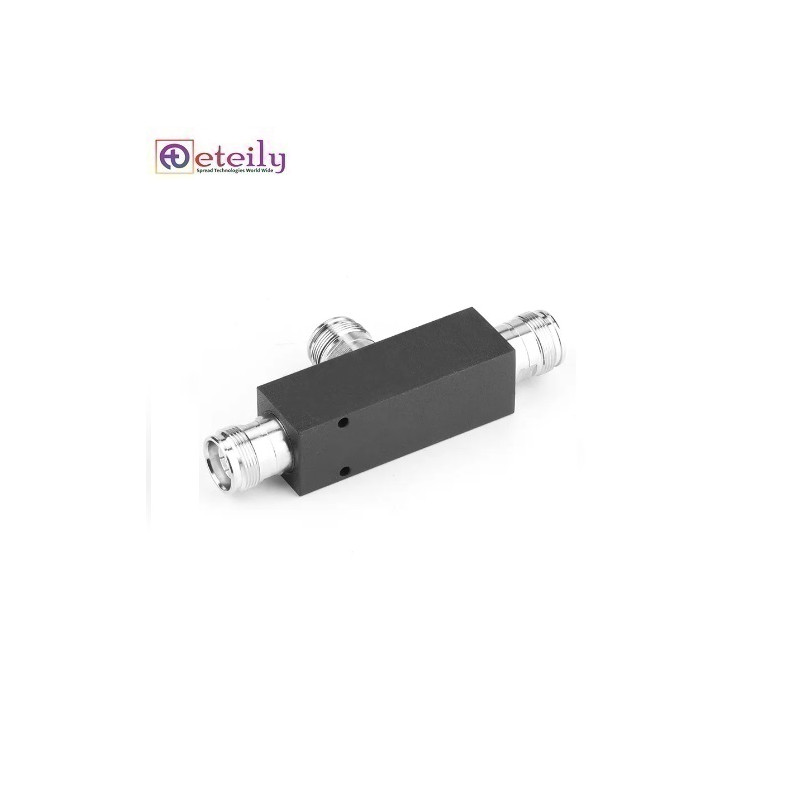

    ETEILY Power Tapper 5dB 6dB 300 W 690-3800MHz 4.3-10 female used for IBS DAS
    ETEILY Power Tapper 5dB 6dB 300 W 690-3800MHz 4.3-10 female used for IBS DAS
    ETEILY Power Tapper 5dB 6dB 300 W 690-3800MHz 4.3-10 female used for IBS DAS
    ETEILY Power Tapper 5dB 6dB 300 W 690-3800MHz 4.3-10 female used for IBS DAS
    ETEILY Power Tapper 5dB 6dB 300 W 690-3800MHz 4.3-10 female used for IBS DAS
    ETEILY Power Tapper 5dB 6dB 300 W 690-3800MHz 4.3-10 female used for IBS DAS

    ETEILY Power Tapper 5dB 6dB 300 W 690-3800MHz 4.3-10 female used for IBS DAS

    SKU: ET-SP3W4G-4.3FS

    Write your review

    EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

    • CE Certified CE Certified
    • ROHSROHS
    • ReachReach
    • sales@eteily.comsales@eteily.com
    • Call Now: Call Now: +91-8889017888
    • REQUEST FOR REQUEST FOR QUOTE
    • "We "We are world Wide Supplier"
    • Whatsapp ContactWhatsapp Contact +91-9343643799
    Name
    Power Tapper
    Frequency Range (MHz)
    698-4000MHz
    Tapper (dB)
    5
    6
    7
    8
    9
    10
    13
    15
    20
    Coupling Tolerance(dB)
    ±1.5
    ±1.5
    ±1.3
    ±1.3
    ±1.3
    ±1.3
    ±1.3
    ±1.3
    ±1.3
    插入损耗Insertion Loss(dB)
    < 2.2
    < 1.8
    < 1.3
    < 0.9
    < 0.8
    < 0.6
    < 0.4
    < 0.3
    < 0.3
    Splitting ratio(dB)
    1:0.33 :
    0.67
    1:0.25 :0.75
    1: 0.2 :
    0.8
    1:0.16 :
    0.84
    1: 0.11
    : 0.89
    1 : 0.1
    : 0.9
    1: 0.05
    : 0.95
    1: 0.03
    : 0.97
    1: 0.01
    : 0.99
    Return Loss(dB)
    ≥17
    VSWR(dB)
    ≤ 1.35
    Intermodulationg Products(dBm)
    ≤ -150 dBc (with 2 x 43dBm)
    Maximum Input (W)
    300 W
    Operating temperature(℃)
    -25℃ to +85℃
    Relative humidity(℃)
    0 ~ 95 %
    Impedance（Ω）
    50 Ω
    Size（mm）
    115 x 45 x 25 mm
    Weight(g)
    540g
    Connector Type
    4.3-10 Female
    Ingress protection
    IP65
    Color
    Black/gray
    SKU: ET-SP3W4G-4.3FS
