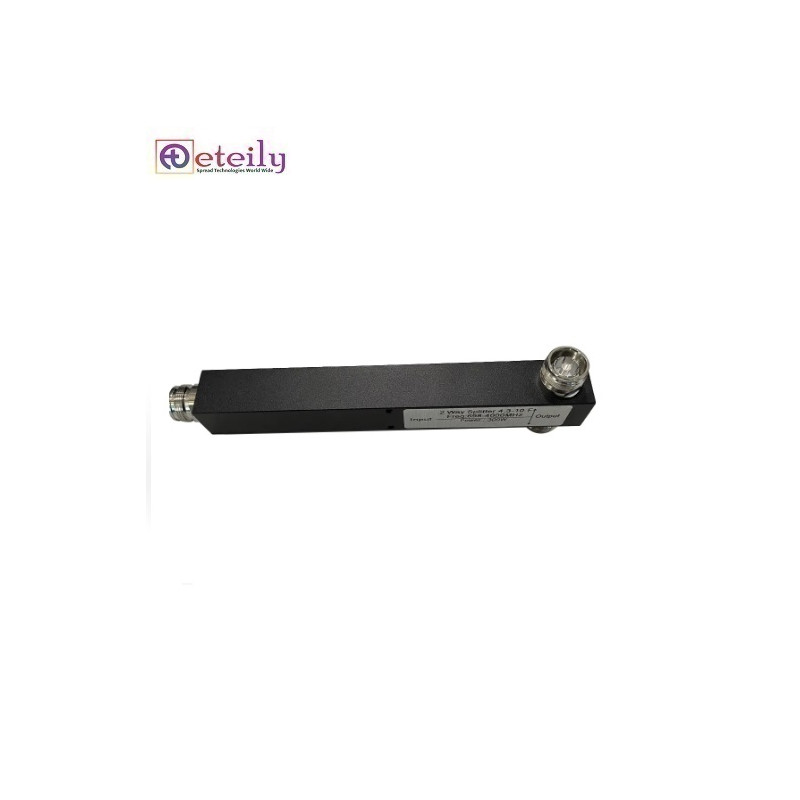

    ETEILY 5G Products with mini din connector 698-4000MHz Power Splitte/Power Divider 2 way with 4.3-10 Connectors
    ETEILY 5G Products with mini din connector 698-4000MHz Power Splitte/Power Divider 2 way with 4.3-10 Connectors
    ETEILY 5G Products with mini din connector 698-4000MHz Power Splitte/Power Divider 2 way with 4.3-10 Connectors
    ETEILY 5G Products with mini din connector 698-4000MHz Power Splitte/Power Divider 2 way with 4.3-10 Connectors
    ETEILY 5G Products with mini din connector 698-4000MHz Power Splitte/Power Divider 2 way with 4.3-10 Connectors
    ETEILY 5G Products with mini din connector 698-4000MHz Power Splitte/Power Divider 2 way with 4.3-10 Connectors

    ETEILY 5G Products with mini din connector 698-4000MHz Power Splitte/Power Divider 2 way with 4.3-10 Connectors

    SKU: ET-SP2W5G-MDFS-4.3FS

    Write your review

    EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

    • CE Certified CE Certified
    • ROHSROHS
    • ReachReach
    • sales@eteily.comsales@eteily.com
    • Call Now: Call Now: +91-8889017888
    • REQUEST FOR REQUEST FOR QUOTE
    • "We "We are world Wide Supplier"
    • Whatsapp ContactWhatsapp Contact +91-9343643799

    5G Products with mini din connector 698-4000MHz Power Splitte/Power Divider 2 way with 4.3-10 Connectors



     Specification:

    Variants

    2-way

    3-way

    4-way

    6-way

    Frequency Range(MHz)

    698~960,1427-3800

    Insertion Loss(dB)

    <3.5

    <5.5

    <7

    <9

    VSWR

    <1.25

    PIM(dBc)

    <-150@2×+43dBm

    Impedance(Ω)

    50

    Connectors

    4.3-10-F

    Power Handling(W)

    300

    Operating Temperature(℃)

    -25~+65

    Application

    Outdoor,IP65

    Colour

    Black
    SKU: ET-SP2W5G-MDFS-4.3FS

    Data sheet

    Type
    Power Splitter
    Connector Type
    4.3-10-F
    Frequency
    698~960,1427-4000MHz
    Operating Temperature
    -25~+65℃
    SKU
    ET-SP2W5G-MDFS-4.3FS
    Place of Origin
    India
