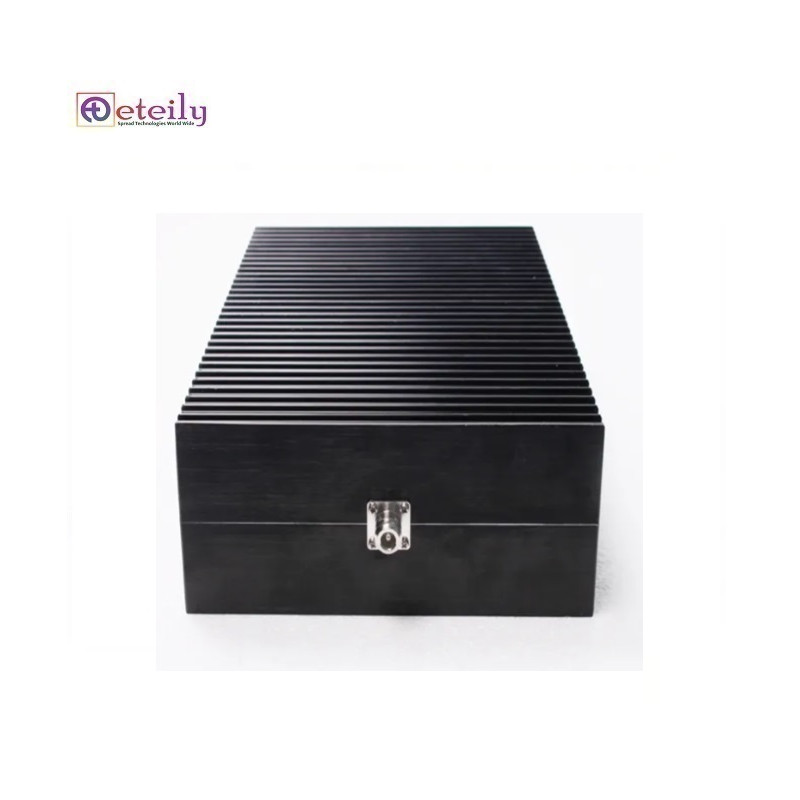

A 500W low PIM (Passive Intermodulation) termination dummy load is a crucial component in RF (Radio Frequency) systems, especially for testing and maintaining equipment. Here's a breakdown of the key components and considerations involved in such a device:

Components and Features

1. Resistor: The core component is a high-power resistor capable of handling 500 watts of continuous power. This resistor is designed to dissipate the RF energy as heat, ensuring that the RF system is properly terminated without reflecting power back into the system.

2. Heat Sink: Given the high power rating, a substantial heat sink is usually required to dissipate the heat generated by the resistor. This prevents overheating and ensures reliable operation.

3. Connector: The dummy load will have RF connectors to match the specific system it is intended for. Common connectors include N-type, SMA, or 7/16 DIN, among others. These connectors ensure proper coupling and impedance matching with the RF equipment.

4. Low PIM Design: To minimize passive intermodulation distortion, the dummy load is designed with high-quality materials and construction techniques. Low PIM performance is essential for avoiding unwanted signal distortion, especially in high-frequency and high-power applications.

5. Enclosure: The dummy load is often housed in a rugged, thermally conductive enclosure to protect the internal components and aid in heat dissipation.
