ETEILY DC-3GHz High Power 450W RF Dummy Load N Male Termination Load 50Ohm

ETEILY DC-3GHz High Power 450W RF Dummy Load N Male Termination Load 50Ohm

SKU: ET-DL3G450W50O-NMS

CE Certified
ROHS
Reach
sales@eteily.com
Call Now: +91-8889017888
REQUEST FOR QUOTE
"We are world Wide Supplier"
Whatsapp Contact +91-9343643799

Description
Product Details

Product descriptions from the supplier

DC-3GHz High power 450W rf Dummy Load N Male Termination load 50Ohm

Feature:

450W Low PIM Termination with N Male/Female Connector

Finned termination
Designed for wireless applications

Low VSWR, Low PIM

1. Technical specification

Frequency Range	MHz	DC-3GHz
Return Loss	dB	≥20
Power Handling	W	450,Avg@30℃
Operating Temperature	℃	-55~+125
Connectors		N-M
Impedance	Ω	50
Application		Indoor
Colour		Black
Weight	kg	7.2

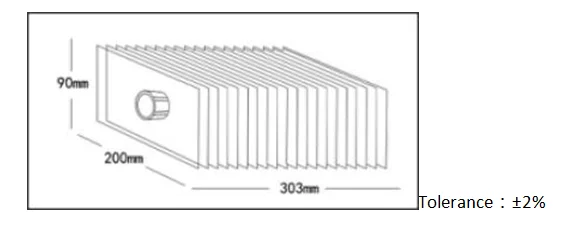

2.Drawing

Unit: mm

Reference SKU: ET-DL3G450W50O-NMS

Data sheet

Type: Dummy Load
Connector Type: N Male/Female
Frequency: DC-3GHz
Impedance: 50Ω
SKU: ET-DL3G450W50O-NMS
Brand Name: Eteily
Place of Origin: India
Operating Temperature: -55~+125℃

Specific References

ETEILY DC-3GHz High Power 450W RF Dummy Load N Male Termination Load 50Ohm
