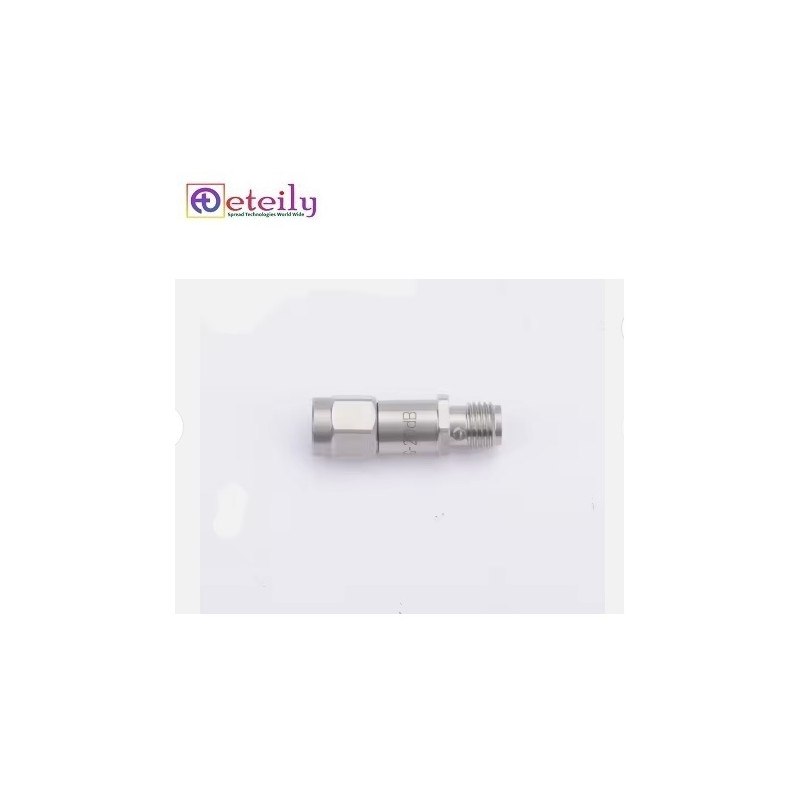

ETEILY Brand DC 18GHz 3dB Coaxial Fixed RF Attenuator 2W

SKU : ET-3D18G2WAT-SMS-SFS

CE Certified
ROHS
Reach
sales@eteily.com
Call Now: +91-8889017888
REQUEST FOR QUOTE
"We are world Wide Supplier"
Whatsapp Contact +91-9343643799

Description
Product Details

DC - 6 /8/12.5/18GHz SMA Male to SMA Female 2W RF Attenuator

Application:

1.provide attenuation.

2.Adjust the signal strength in the circuit.

3.They can be used to show the attenuation data of the network tested directly when measuring circuit by comparative approach.

4.Improve the impedance matching.

Features:

1.Wide frequency band.

2.Low VSWR

3.Anti-pulse

4.Good fireproof performance

Specification

SMA Connector 2W Coaxial Fixed RF Attenuator
Applicable standards
Interface according to	IEC61169-35
Electrical Performance
Nominal Impedance	50Ω
Freqency Range	DC to 18GHz
Insertion Loss
VSWR	≤1.25
Standard dB Values	0-10, 12, 15, 20, 30, 40dB
Mechanical Performance
0-10 dB	±0.5 dB
12,15,20 dB	±0.7 dB
30 dB	±0.9 dB
Environmental Performance
Temperature Range	-20-+85℃
Materials/Finish
Center contact	Beryllium bronze , Gold plated
Body	Passivated Stainless Steel
Dielectric	PTFE

Reference SKU : ET-3D18G2WAT-SMS-SFS

Specific References

ETEILY Brand DC 18GHz 3dB Coaxial Fixed RF Attenuator 2W
