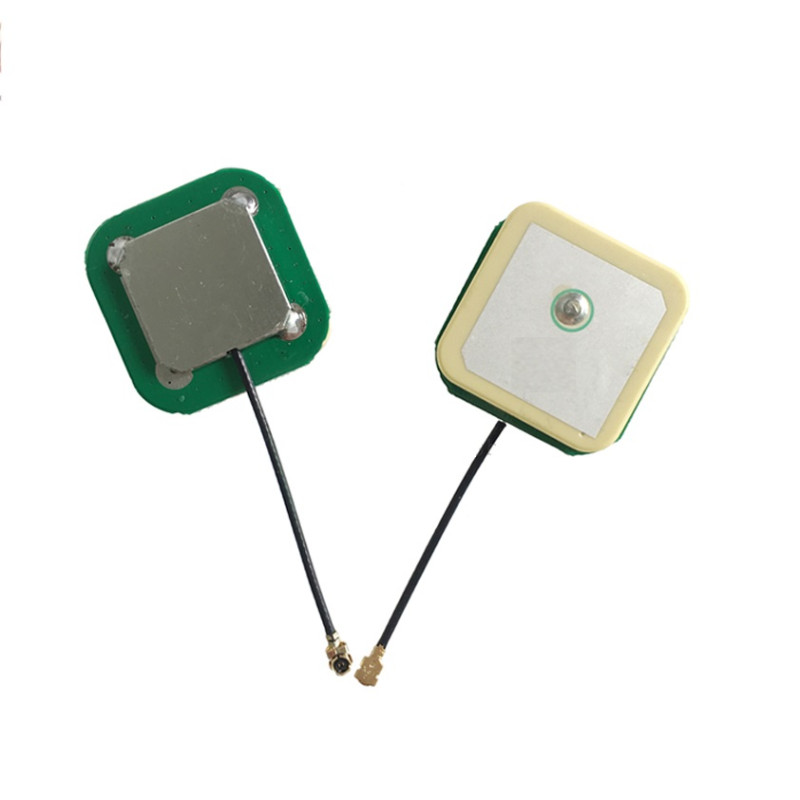

      GPS/GLONASS L1+L2 Active Ceramic Patch Antenna With 1.13mm Cable (L -10CM) + UFL (25*25mm)
      GPS/GLONASS L1+L2 Active Ceramic Patch Antenna With 1.13mm Cable (L -10CM) + UFL (25*25mm)
      GPS/GLONASS L1+L2 Active Ceramic Patch Antenna With 1.13mm Cable (L -10CM) + UFL (25*25mm)
      GPS/GLONASS L1+L2 Active Ceramic Patch Antenna With 1.13mm Cable (L -10CM) + UFL (25*25mm)
      GPS/GLONASS L1+L2 Active Ceramic Patch Antenna With 1.13mm Cable (L -10CM) + UFL (25*25mm)

      GPS/GLONASS L1+L2 Active Ceramic Patch Antenna With 1.13mm Cable (L -10CM) + UFL (25*25mm)

      SKU : ET-GPL12-5L10C-U-254

      Type :
      Technology :
      Frequency :
      Gain :
      Connector :
      Mounting :
      Cable Type :
      Antenna Type :
      Write your review

      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

      • CE Certified CE Certified
      • ROHSROHS
      • ReachReach
      • sales@eteily.comsales@eteily.com
      • Call Now: Call Now: +91-8889017888
      • REQUEST FOR REQUEST FOR QUOTE
      • "We "We are world Wide Supplier"
      • Whatsapp ContactWhatsapp Contact +91-9343643799

      FEATURES

      • Built-in Ceramic antenna
      • Dedicated to work with GPS (1575.42 +/- 5MHz)
      • VSWR: <= 1.5
      • Strengthening: 28 dB
      • Impedance: 50 Ω +/- 10 Ω
      • Polarization: Circular
      • Power supply range: 1.4 - 3.6 V
      • Power consumption: <= 9 mA at 3.3 V
      • Dedicated to GPS reception
      • Built-in low noise booster
      • High sensitivity
      • High resistance to interference
      • U.FL connector (IPEX)
      • Cable length: 10cm / Customized
      • Operating temperature range: -40°C to 85 °C
      • Dimensions: 25 x 25 mm

      Typical applications

      - Tracking/ Mapping Devices
      - Industrial Machinery
      - Sea Vessels
      - Air Navigation
      - Automobiles/ Transportation

      ET-GPL12-5L10C-U-254
