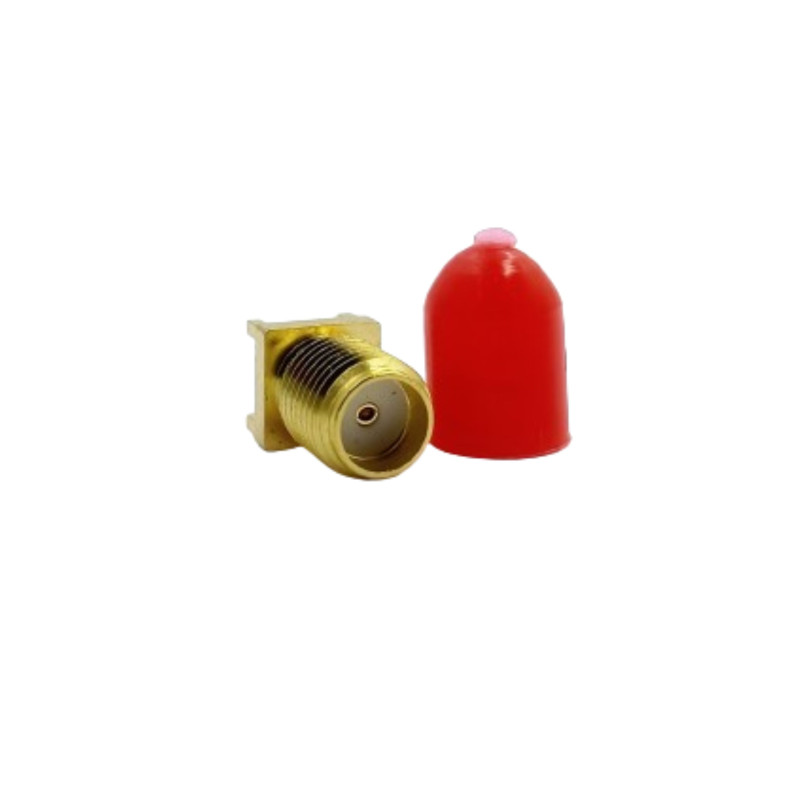

The SMA Female Straight PCB Mount Connector is designed for secure and efficient connection of RF signals to printed circuit boards (PCBs). This connector is ideal for applications requiring reliable performance and high-frequency signal integrity.

Key Features

1. Connector Type:

   • Gender: Female
   • Orientation: Straight
   • Mounting Type: PCB mount

2. Dimensions:

   • Pin Diameter: Ø0.9 mm
   • Height: 2.0 mm (from PCB surface to the end of the connector)

3. Electrical Characteristics:

   • Impedance: 50 ohms
   • Frequency Range: Up to 18 GHz
   • VSWR: Typically less than 1.2:1

4. Mechanical Characteristics:

   • Material: High-quality brass with gold plating for enhanced conductivity and corrosion resistance
   • Dielectric: PTFE for consistent electrical performance

5. Environmental Characteristics:

   • Operating Temperature Range: -65°C to +165°C
   • Durability: Designed for high durability with more than 500 mating cycles
