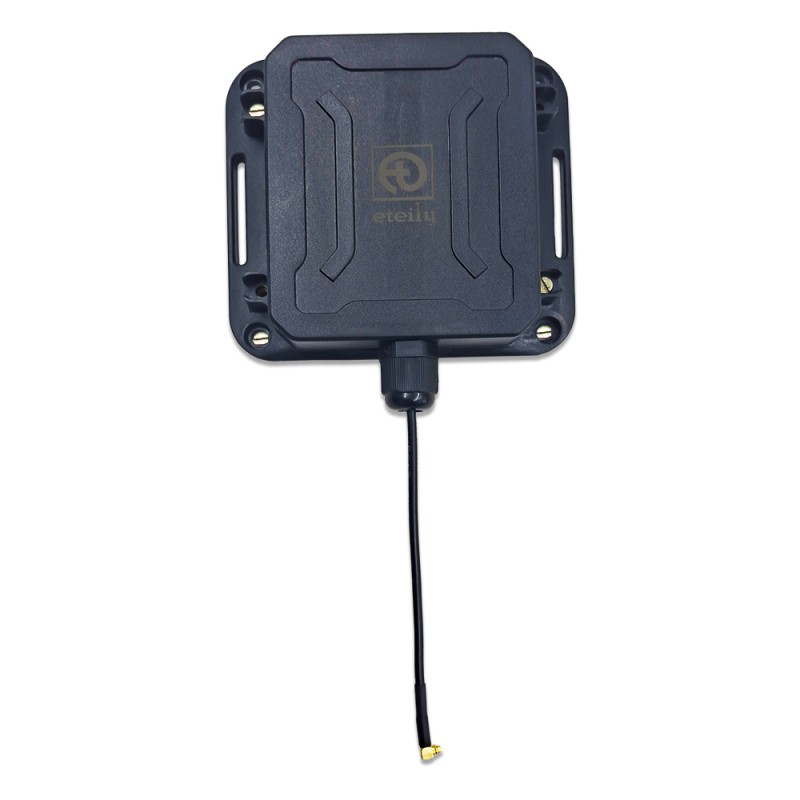

L1/L2/L5 Screw Mount Box Antenna With RG-174 Bare Copper Cable

The L1/L2/L5 Screw Mount Box Antenna from Eteily Technologies is a high-performance multi-frequency GNSS/GPS external antenna designed for precise positioning, tracking, and timing. It covers the most common GNSS bands—L1 (1575.42 MHz), L2 (1602 MHz), and L5 (1176.45 MHz), making it ideal for sophisticated GPS and multi-constellation systems. This antenna, with its strong screw-mount construction and compact box form factor, is perfect for installation on vehicles, outdoor equipment, survey stations, unmanned platforms, RTK base/rover systems, and other GNSS-enabled devices. The internal low-noise amplifier (LNA) offers robust signal amplification, while the basic RG-174 cable with MMCX male right-angle connector allows for versatility and simple integration with receivers and GNSS modules.

Key Features:

1. Multi-band GNSS Reception:

• Designed to receive GPS L1 (1575.42 MHz), L2 (1602 MHz), and L5 (1176.45 MHz) frequency bands for better satellite visibility and positioning precision.

2. High gain with LNA:

• The integrated 28-dB gain low-noise amplifier (LNA) increases weak signal reception and overall GNSS performance in demanding conditions.

3. Omnidirectional Radiation

• The omnidirectional radiation pattern allows signal reception from satellites throughout the sky, enabling steady tracking even when moving.

4. Connector & Cable

• It comes with an MMCX (male) right-angle connector and an RG-174 bare copper cable (about 10 cm) for easy connection to GNSS receivers and modules.

5. Durable Mounting

• The screw-mount style provides for stable, permanent placement on flat surfaces and outdoor installations.
