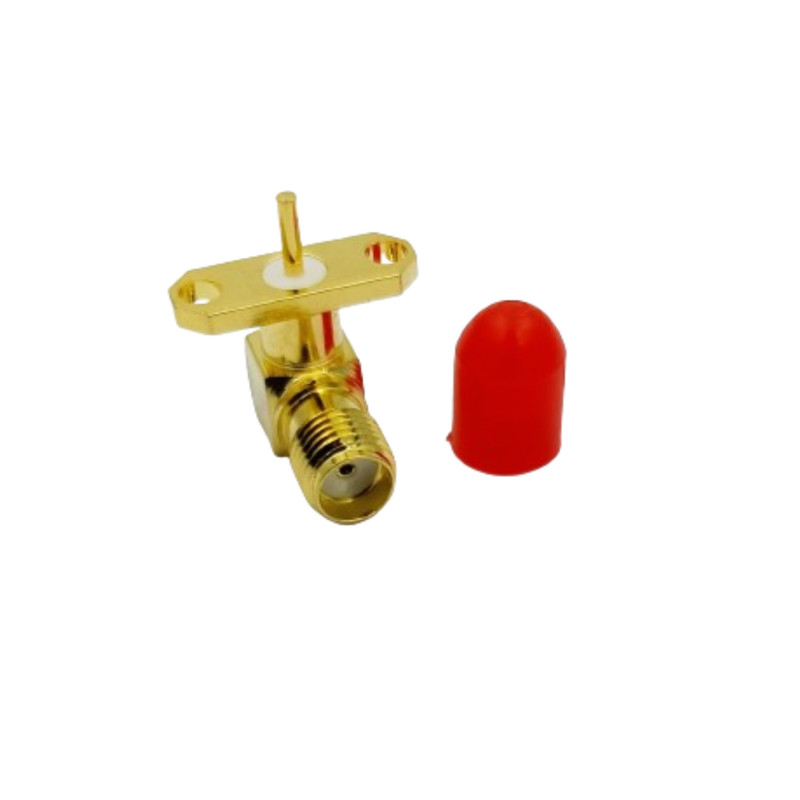

The SMA Female 2-Hole Panel Mount Right Angle Connector without Teflon is engineered for robust RF connections in applications where space constraints and panel mounting are critical. This connector is designed to offer reliable performance and ease of installation, making it ideal for various high-frequency applications.

Key Features

1. Connector Type:

   • Gender: Female
   • Orientation: Right Angle
   • Mounting Type: 2-Hole Panel Mount

2. Material and Construction:

   • Body Material: High-quality brass with gold or nickel plating for enhanced durability and conductivity
   • Center Contact: Gold-plated for improved signal transmission
   • Insulator: High-performance dielectric material (non-PTFE)

3. Dimensions:

   • Mounting Holes: 2-hole configuration for secure panel mounting
   • Right Angle Design: Optimized for space-saving and efficient cable routing

4. Electrical Characteristics:

   • Impedance: 50 ohms
   • Frequency Range: DC to 18 GHz
   • VSWR: Typically less than 1.2:1 up to 18 GHz

5. Mechanical Characteristics:

   • Durability: Capable of withstanding more than 500 mating cycles
   • Operating Temperature Range: -55°C to +155°C
   • Panel Thickness Compatibility: Designed to fit standard panel thicknesses
